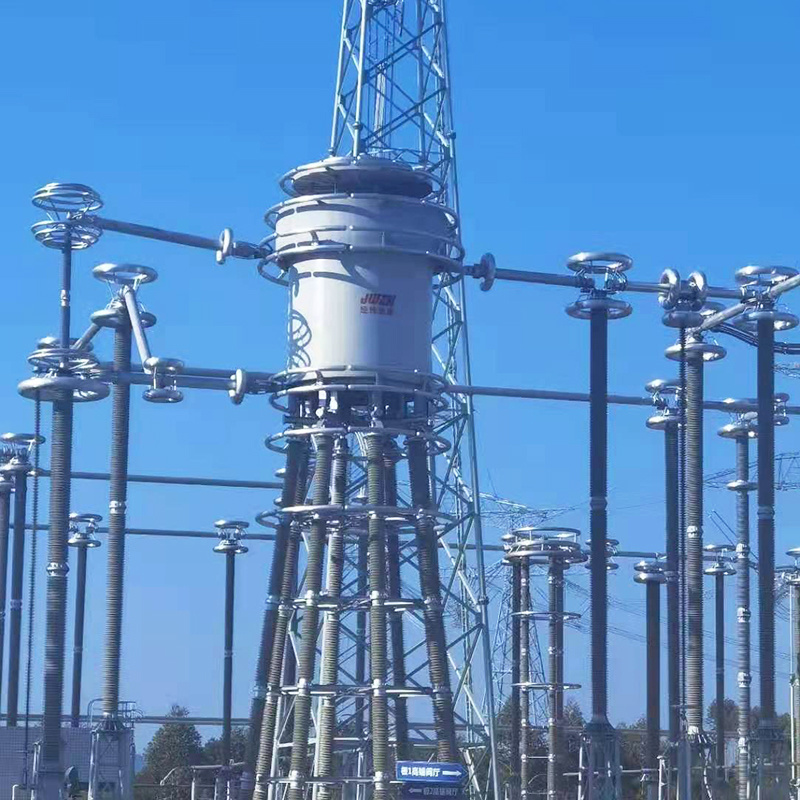

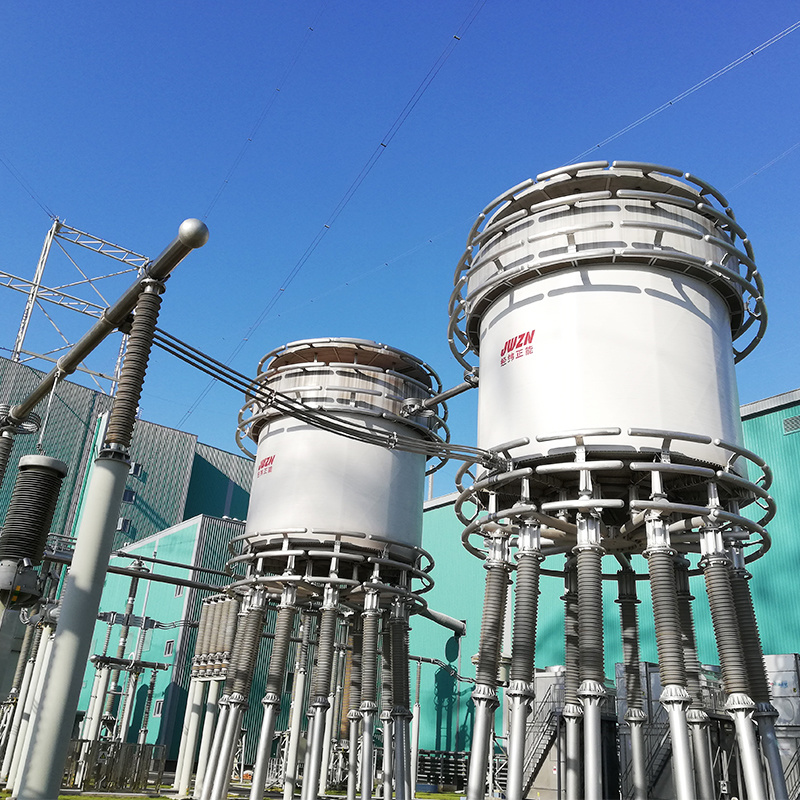

Smoothing reactor
The smoothing reactor is connected in series with the DC high-voltage line, acting as both part of the converter station and a back-to-back interconnection between different
Key words:
Smoothing reactor
Category:
E-mail:
Details
Smoothing Reactor
Rated Voltage: Up to 1100 kV
Functional Overview
Connected in series with HVDC transmission lines, it serves in converter stations or back-to-back interconnects between power grids. Core functions include:
1.Suppressing harmonic currents (ripple reduction)
2.Limiting surge currents during faults
3.Controlling the rate of rise of DC phase current
4.Enhancing power system dynamic stability
Operating Conditions
| Parameter | Standard Specification | Customization Options |
|---|---|---|
| Installation | Indoor / Outdoor | — |
| Ambient Temp | -40℃ to +50℃ | Extended range available |
| Altitude | ≤3000 m | Up to 5000 m (derated) |
| Max Wind Speed | 45 m/s (162 km/h) | Higher survivability design |
| Humidity | ≤90% (non-condensing) | — |
| Seismic | • Horizontal: 0.30g • Vertical: 0.15g | Per IEEE 693/IEC 61373 |
Critical Considerations
Indoor Installation:
Ventilation: Forced-air cooling (default) / Natural convection (customizable)
Ambient Requirements:
Dust level: ≤0.5 mg/m³ (non-conductive/explosive)
No corrosive gases (SO₂, H₂S, Cl₂ limits per IEC 60721-3-3)
Outdoor Installation:
UV-resistant silicone rubber insulators
Ice load withstand: Up to 20 mm radial ice (IEC 60071-2)
