Filter reactor
Filtering reactors can be connected in parallel or series with capacitor banks. The resulting tuned circuit reduces harmonic currents and controls the amplitude of ripple currents.
Key words:
Filter reactor
Category:
E-mail:
Details

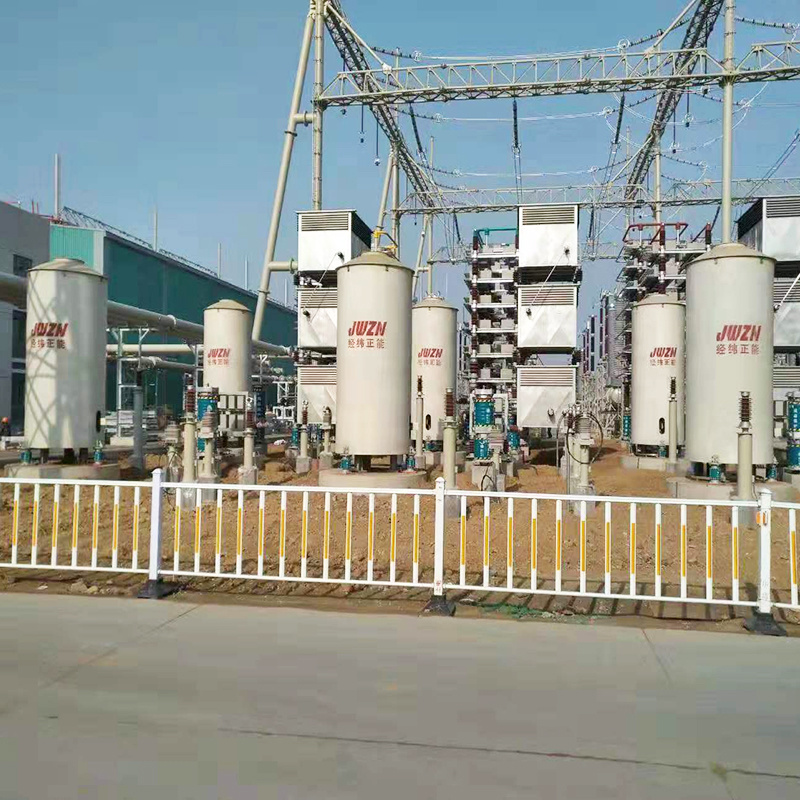

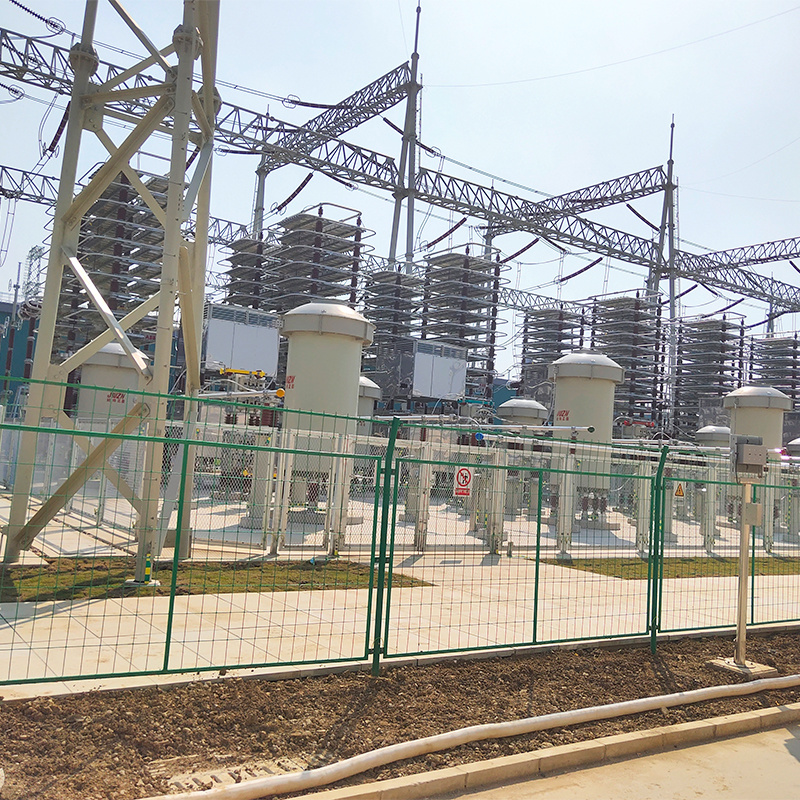

Filter Reactor
Rated Voltage: Up to 1000 kV
Core Functions:
Configured in series/parallel with capacitor banks to form tuned circuits for:
1.Harmonic Suppression: Attenuates 5th-37th order harmonics (>30 dB reduction)
2.Ripple Control: Limits current fluctuations to ≤1% p-p
3.Resonance Prevention: Detunes grid-capacitor interactions
4.Power Quality Enhancement: Maintains THD<sub>i</sub> ≤3% at PCC
Operating Conditions:
| Parameter | Standard Specification | Customization Options |
|---|---|---|
| Installation | Indoor/Outdoor | Arctic/Desert hardening |
| Ambient Temp | -40℃ to +50℃ | -55℃ to +65℃ (extended range) |
| Altitude | ≤3000 m | 5000 m (with derating) |
| Max Wind Speed | 45 m/s (162 km/h) | 70 m/s (252 km/h) typhoon-proof |
| Humidity | ≤90% (non-condensing) | Condensing environments (IP56) |
| Seismic | Horizontal: 0.30g Vertical: 0.15g | Zone 4: 0.5g (IEEE 693 Cat. IV) |
| Pollution | IEC 60815 Class III | Class IV (50 mm/kV creepage) |
Technical Parameters:

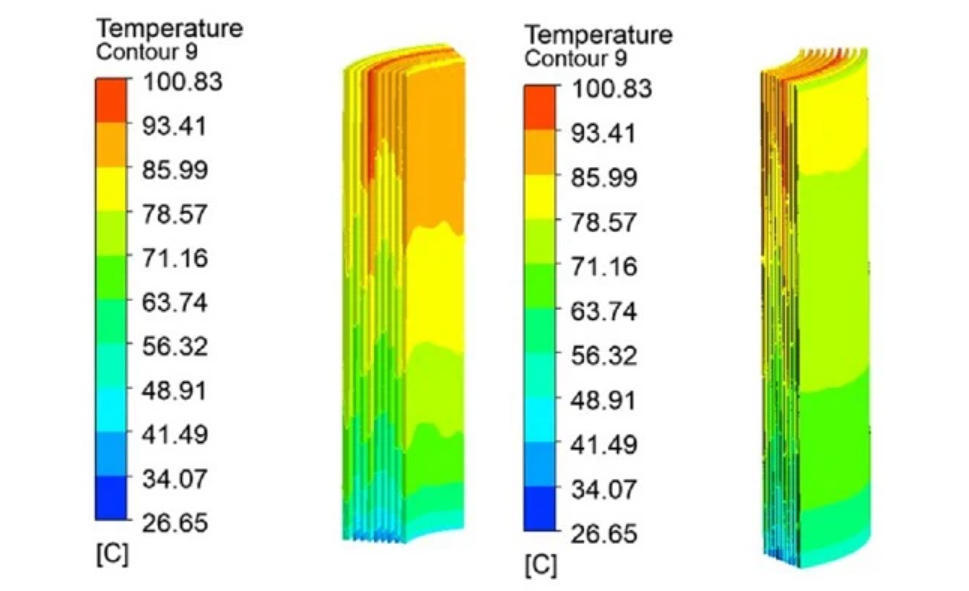

| Parameter | Standard Range | Precision Options |
|---|---|---|
| System Voltage | 66-1000 kV | 1100 kV (BIL 2500 kV) |
| Rated Voltage | 90-110% of system voltage | Adjustable taps (±15%) |
| Frequency | 50/60 Hz ±2% | 16.7-100 Hz (special grids) |
| Rated Current | 100 A - 8 kA | 12 kA (forced cooling) |
| Harmonic Spectrum | 150 Hz-2.5 kHz | Custom notch filters |
| Inductance Tolerance | ±5% | ±1% (laser-trimmed) |
| Q-Factor | 30-150 (tunable) | Precision ±3% |
| Short-Time Current | 25 kA/3s or 40 kA/1s | 63 kA/1s (peak) |
| Insulation Type | Dry-type (epoxy)/Oil-immersed | SF₆ gas for compact design |
| Losses @100°C | ≤0.2% of reactive power | Ultra-low loss: ≤0.1% |
| Avg. Temp Rise | 65K (winding) | — |
| Hot Spot Rise | 80K (winding) | Fiber Bragg grating monitoring |
| Sound Level | ≤70 dB(A) @ 1m | Silenced: ≤55 dB(A) |
| Inductance Adjustment | ±10% in 0.5% steps | Continuous tuning (motorized) |
| Terminal Orientation | Top/side axial | 3D-configurable bushings |
DKNC Customization:
Modular Stacks: For >1000 kV (cascaded units)
Retrofit Kits: For legacy capacitor banks
Seismic Isolation: Spring/viscous damper systems
Cyber Security: IEC 62351-compliant monitoring
